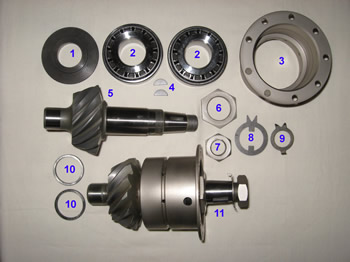

In Kit ‘A’ we would draw attention to item 11, this is a completely new pinion and housing assembly constructed from items 1 through 10. We normally supply this part of the kit ready assembled, as shown in item 11. In this instance an R type Continental unit is shown assembled merely as an example, but other models are similar.

This item 11 assembly has many advantages. We ask for the return of the customer’s old pinion and housing assembly in an UNCLEANED condition, together with item 15 from the old axle. Once received the old unit is placed in a jig that prevents the old worn pinion bearings from affecting any setting data. The new unit is then set to replicate the customer’s old assembly in his axle case, which may be on the other side of the World. This allows us to pre-set the pinion penetration position, which normally involves some considerable skill and special equipment. In addition we have already pre-loaded the bearings correctly, saving the customer the need to have pre-loading equipment on hand and also special removal tools for the serrated bearing retaining nut. Therefore this item 11 assembly saves the customer considerable effort and expense, besides the need to have specialist skills on hand. In fact, in setting terms, the customer will only need to adjust the Crown wheel back lash and the internal differential pinion and bevels, all under close instruction. Of course customers can request the kit of parts unassembled.

INDEX TO AXLE KITS
References to Bentley Models includes the equivalent R-R models
No.	Description	Application	Notes
1	Oil thrower pinion housing (hardened)	Taper pinion bearing Bentley R Type and Bentley MkVI taper bearing conversions	Inc in item 11
2	Taper pinion bearings x 2	Pinion bearings, either Metric or Imperial according to Pinion type	Inc in item 11
3	Housing pinion for Taper bearing (special)	Housing for Metric or Imperial taper bearings, supplied oversize with 8 oil feeds	Inc in item 11
4	Woodruff keys x 2	For pinion shaft	Inc in item 11
5	Pinion	12 / 41 R type shown here separately, available according to ratio chosen	Inc in item 11
6	Nut bearing retaining left hand threaded	Nut to retain pinion bearings on Bentley R type and Bentley MkVI	Inc in item 11
7	Nut drive flange retaining right hand thread	Nut to retain drive flange, NOT SUPPLIED NORMALLY WITH KITS	Not in item 11
8	Lock tab for bearing nut item 6	Locks nut item 6	Inc in item 11
9	Lock tab for flange nut item 7	Locks nut item 7	Inc in item 11
10	Spacers for bearing pre-load x 2 OR x 1	Supplied according to size required, occasionally as a single item	Inc in item 11
11	Pinion assembly with housing and bearings	Supplied with items 1 thro 6 and 8 thro10 assembled and pre-loaded as a unit	Complete unit
12	Oil seals leather x 2	Fit each side of main axle bearings in carriers
13	Bearing nose axle pinion	Supplied to latest standard.
14	Spacer backlash (hardened before grinding)	Supplied to size required. In kits a selection are supplied and the excess returned
15	Spacer pinion penetration (not hardened)	Supplied to size required. In kits a selection are supplied and the excess returned
16	Lock tabs centre case assembly x 4 or x 8	Type supplied depending on application either 4 or 8
17	Alloy sealing washers x 3	Late type supplied for drain, filler and breather plugs
18	Crown Wheel	13 / 40 R type Continental shown here, available according to ratio chosen
19	Taper main side bearings x 2	Later type with modified radius always supplied
20	Illustration purposely omitted
21	Pinion wheel spacers x 4	Hardened steel, to size. In kits a selection are supplied and the excess returned
22	Lock tabs crown wheel assembly 9 or 12	Type supplied depending on application either 9 or 12
23	Bevel wheel spacers x 2	Hardened steel, to size. In kits a selection are supplied and the excess returned
24	Lock tabs, side spring housing x 6	To fit spring or belleville housing
25	Trunnion shafts x 2	Carry the 4 x pinion wheels in the centre case, supplied if requested at extra cost	Not in Kits
26	Housing Pinion Heavy Duty modified S2/S3	Modified to provide better support for pinion bearings on S2 / S3 series axles
27	Washer (hardened)	New or remachined fitted on exchange units, supplied if requested at extra cost	Not in Kits
28	Bearing nose axle pinion (oversize)	Specially oversize for certain applications, supplied if requested in lieu of item 13	Not in Kits
29	Thrower S axles used with 30 or 32 and 33	Always fitted on exchange units, machined / exchange if requested at extra cost	Not in Kits
30	Seal housing to take item 33 for MKVI axles	Always fitted on exchange units, machined / exchange if requested at extra cost	Not in Kits
31	Housing Pinion Heavy Duty modified S1	Modified to provide better support for pinion bearings on S1 series axles
32	Seal housing to take item 33 for S2/S3 axle	Always fitted on exchange units, machined / exchange if requested at extra cost	Not in Kits
33	Oil seal modern type, different sizes	Always fitted on exchange units, supplied if requested at extra cost	Not in Kits
34	Square head side plate studs	Used on Bentley MkVI / Bentley R type axles as required on exchange units	Not in Kits
35	Nuts 0.250 inch BSF x 14	Used on Bentley MkVI / Bentley R type axles on exchange units	Not in Kits
36	Nuts 0.375 inch BSF x 28	Used on Bentley MkVI / Bentley R type axles on exchange units	Not in Kits
37	Plug Drain / Filler	Used on Bentley MkVI / Bentley R type axles as required on exchange units	Not in Kits
38	Flange drive re-machined for item 33	Re- machine flange always fitted on exchange units, and faced off square	Not in Kits
39	Seal housing to take item 33 for S1 axle	Always fitted on exchange units, machined / exchange if requested at extra cost	Not in Kits
40	Stud and new nut x 14 or x 19	Normally replaced on exchange units	Not in Kits
